BAOCHARM 6 Ton Direct Cooling Transparent Block Ice Machine

Direct Cooling Technology for Large Format Ice Blocks

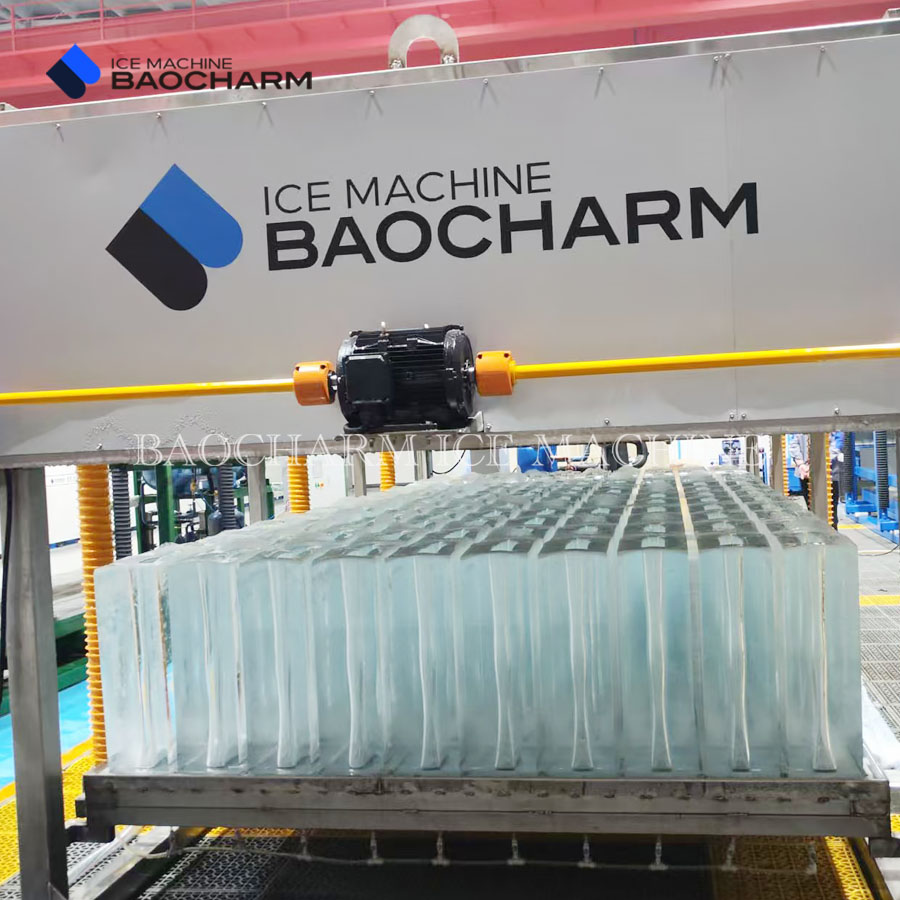

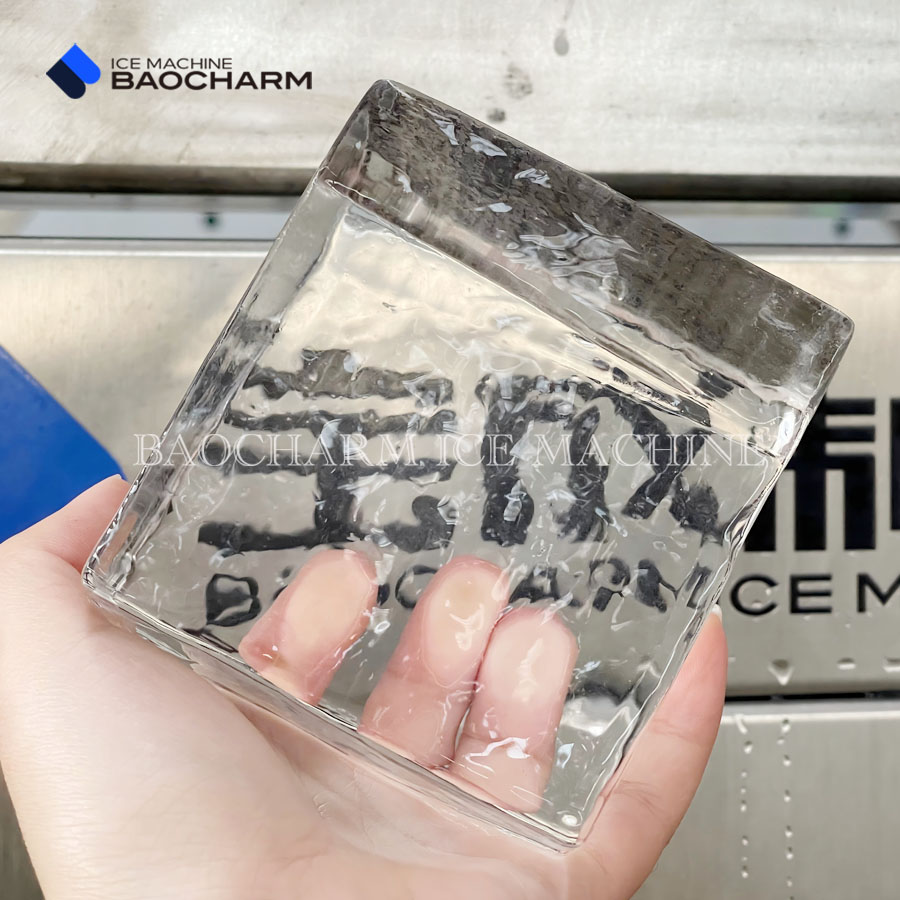

The BCTM-6T 6 ton ice block machine is engineered as a large format block ice maker for operations that require slow-melting, high-clarity ice blocks. Using direct-contact evaporator technology, it circulates purified water over the freezing plates while refrigerant extracts heat—no brine or glycol intermediary. The continuous one-way flow pushes micro-bubbles and solids away from the freezing front, resulting in a solid 60 kg block with no white core. Turbidity in the finished ice typically measures below 5 NTU, making it suitable for direct-contact food display and ice sculpture.

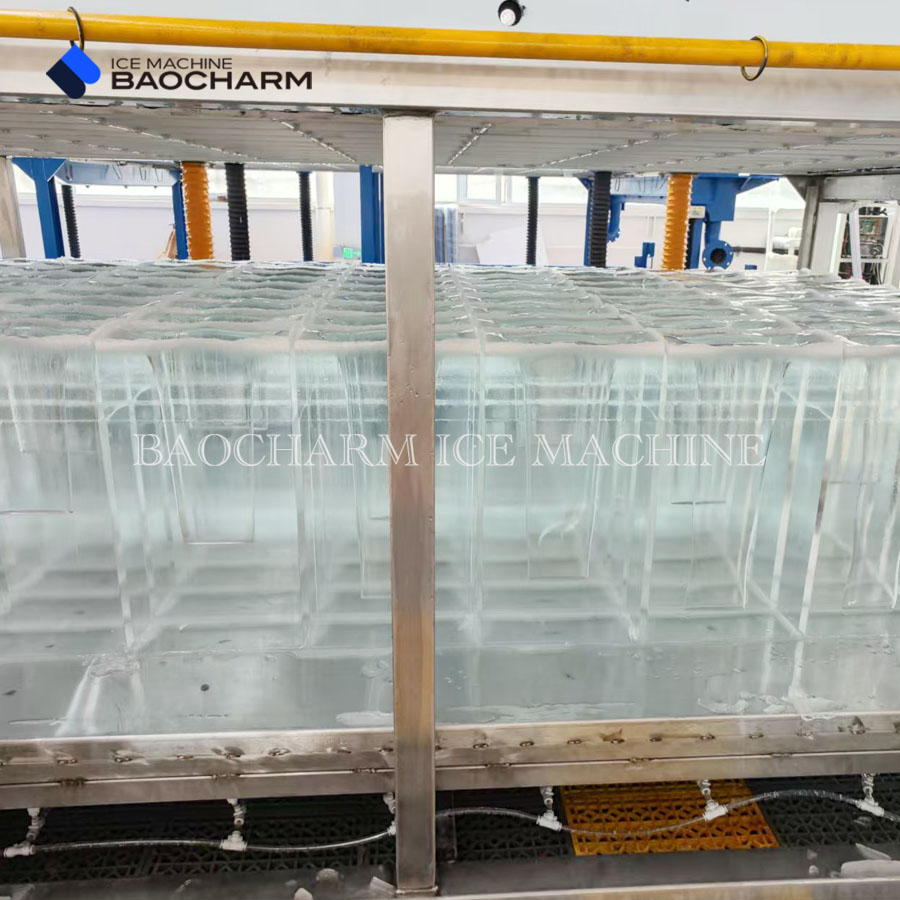

As a heavy-duty industrial ice block machine, the BCTM-6T integrates 304 stainless steel ice molds, a hot gas defrost cycle, and Siemens PLC control. Each block measures 205×40×750 mm, with customizable length. The modular frame simplifies shipping and installation. Manufactured under ISO 9001:2015 and with CE marking, this transparent block ice maker removes the need for brine handling, which lowers maintenance cost and contamination risk.

Key Specifications at a Glance

Applications

• Seafood cold chain and fresh produce preservation (wetted parts comply with EU 1935/2004)
• Concrete cooling for dams and large-scale construction

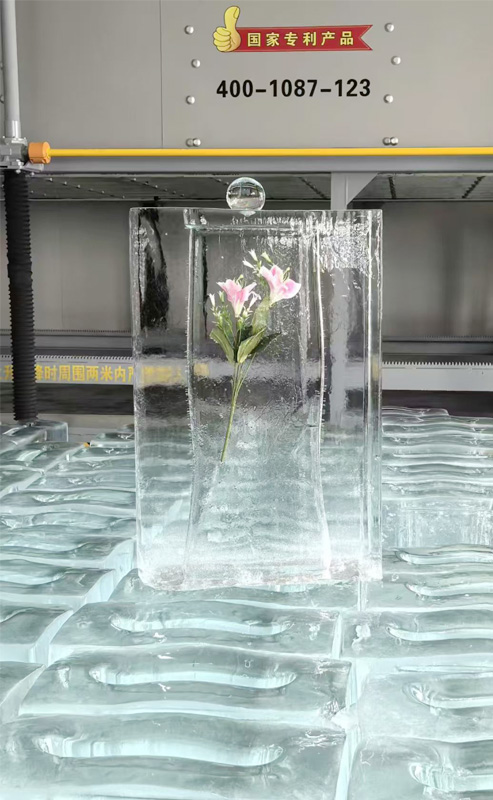

• Ice sculpture, upscale bars, and luxury events
• Ice plants serving fisheries and wholesale distribution

Frequently Asked Questions

How does this large format block ice maker produce clear ice without brine?

Water flows continuously over the direct-cooling evaporator while freezing happens in one direction. The flow removes dissolved air and impurities before they become trapped, yielding an optically transparent block.

What maintenance is required for the BCTM-6T?

We recommend cleaning the water tray and circulation lines every two weeks. The openable mold design allows tool-free access. Using softened or RO water reduces scale buildup on the evaporator plates.

Can the machine work in tropical conditions?

Yes. The standard water-cooled condenser is designed for ambient temperatures up to 45°C. For extreme environments, air-cooled or evaporative condensers can be specified.

What water quality is needed?

To maintain ice clarity and minimize descaling, feed water hardness should be below 50 ppm CaCO₃. An integrated water softening or reverse osmosis module is available upon request.

What certifications does this 6 ton ice block machine have?

The unit is made under ISO 9001:2015 quality management and carries CE marking. Electrical components are CE/UL listed. Material certificates support HACCP compliance for food contact.

Request a Quote for Your Ice Project



Whether you are setting up a new ice plant or expanding an existing facility, the BCTM-6T direct cooling block ice machine delivers consistent output and verified ice quality. Our engineering team can provide 2D/3D layout drawings, performance data under your site conditions, and a complete component list.



Contact us with your production target and ambient parameters to receive a project-specific quotation.
