Industrial Tube Ice Machine Technical White Paper: From Refrigeration Cycle to Smart Control

Industrial tube ice machines revolutionize high-volume ice production for sectors demanding hygiene, efficiency, and reliability. This white paper dissects core technologies, applications, and innovations in modern tube ice systems—equipping you with actionable insights for operational excellence.

Definition & Core Components

Industrial tube ice machines integrate four critical subsystems:

• Refrigeration System: Compressor, condenser, and expansion valve for ammonia/R404a cycles.

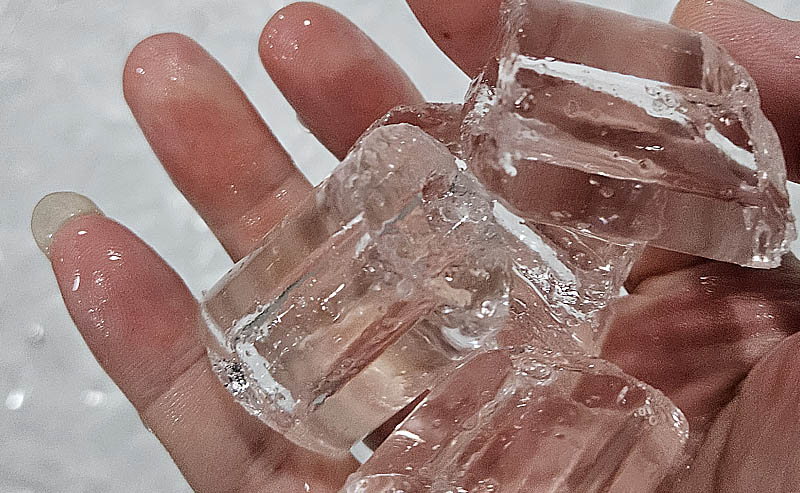

• Vertical Evaporator: Stainless-steel tubes where water freezes into hollow cylindrical ice tubes.
• Smart Control System: PLC/HMI interfaces for automated operations.
• Auxiliary Units: Water purification, ice-cutting blades, and storage silos.

Key Takeaway: Modular design ensures scalability for tube ice factory setups.

Working Principle & Technical Advantages

Process Flow:

1. Water Circulation: Purified water flows into evaporator tubes.
2. Freezing: Refrigerant absorbs heat, forming 10–12mm ice cylinders in 15–20 mins.
3. De-icing: Hot gas injection releases ice.
4. Cutting: Blades slice tubes into uniform segments.

Competitive Edge:

• Efficiency: 30% lower energy use vs. block ice systems (COP ≥ 1.6).
• Hygiene: FDA-grade materials prevent contamination.
• Smart Control: IoT-enabled diagnostics reduce downtime.

Technical Specs & Capacity

Note: Commercial ice tube maker machine models prioritize space optimization for urban facilities.

Industry-Specific Solutions

• Food Processing: Rapid chilling for seafood/poultry; NSF-certified ice tube maker machine industrial units.
• Cold Chain Logistics: –4°C ice maintains product integrity during transit.
• Chemical/Pharma: Ultra-pure ice for reactor cooling (ISO Class 8 compliance).

Certifications & Standards

• Global: CE, ASHRAE 15, UL-Safety
• Hygiene: NSF/ANSI 12, EU 1935/2004
• Efficiency: ISO 50001, ENERGY STAR®

Future Trends & Market Shifts

• AI Optimization: Predictive maintenance via sensor networks.
• Carbon-Neutral Tech: CO₂ refrigerant adoption (GWP=1).
• Policy Drivers: Tax incentives for ENERGY STAR®-rated units.

Smart Selection & Maintenance

Buying Checklist:

• Match output to peak demand +30% buffer.
• Verify corrosion-resistant evaporators (SUS304/316L).
• Demand remote-monitoring capabilities.

Maintenance Protocol:

• Biweekly: Clean water filters; inspect refrigerant pressure.
• Quarterly: Sanitize tubes; calibrate sensors.
• Annually: Compressor overhaul.

Conclusion

From seafood processing to vaccine storage, industrial tube ice machines deliver unmatched efficiency and compliance. As automation and sustainability redefine the landscape, strategic investment in certified systems ensures long-term ROI.
