Ice block maker machines are indispensable in industries ranging from fisheries to construction, where large, dense ice blocks are essential. At the heart of these machines lies their cooling system—a complex yet efficient mechanism that ensures consistent ice production. This article delves into the principles, design, and workflow of cooling systems in industrial ice machines, offering insights into air-cooled and water-cooled configurations, refrigeration components, and their operational synergy.
Understanding the Core Principles of Cooling Systems
Cooling systems in industrial ice machines operate on the fundamental laws of thermodynamics. By compressing and expanding refrigerants, these systems absorb heat from water, lowering its temperature until it solidifies into ice blocks. Key objectives include:
Heat absorption: Removing thermal energy from water.
Energy efficiency: Minimizing power consumption while maximizing output.
Temperature stability: Maintaining consistent conditions for uniform ice formation.
This process is shared across water-cooled ice machines and air-cooled ice machines, though their heat dissipation methods differ.
Anatomy of an Ice Block Maker Machine Cooling System
A typical industrial refrigeration system comprises four critical components:
Compressor
Acts as the system’s “heart,” pressurizing refrigerant gas to increase its temperature.
Common types: Scroll, reciprocating, or screw compressors.
Condenser
Air-cooled ice machines: Use fans to dissipate heat from the refrigerant into the ambient air.
Water-cooled ice machines: Rely on water circulation to transfer heat, ideal for high-efficiency environments.
Expansion Valve
Regulates refrigerant flow, causing a pressure drop that cools the liquid before it enters the evaporator.
Evaporator
A network of coils submerged in water. As refrigerant evaporates, it absorbs heat, freezing water into blocks.
Step-by-Step Workflow of an Ice Refrigeration System
Compression Phase
The compressor pressurizes gaseous refrigerant, raising its temperature to ~120°F–140°F.
Heat Dissipation
Hot refrigerant moves to the condenser. In air-cooled systems, fans blow air over coils; in water-cooled units, water absorbs heat before being cycled out.
Expansion and Cooling
The refrigerant passes through the expansion valve, rapidly cooling to sub-zero temperatures as it transitions to a low-pressure liquid.
Ice Formation
Chilled refrigerant flows through the evaporator, absorbing heat from surrounding water. Over 6–24 hours (depending on block size), water freezes into dense ice blocks.
Cycle Repetition
The refrigerant returns to the compressor, restarting the process.
Choosing the Right Cooling System for Industrial Applications
Air-cooled ice machines: Best for regions with low ambient temperatures or limited water access. Lower upfront costs but higher energy use.
Water-cooled ice machines: Ideal for high-output facilities with water recycling capabilities. More energy-efficient but require regular maintenance.
Hybrid systems: Combine both methods for optimized performance in variable conditions.
Optimize Your Ice Production with BAOCHARM’s Expertise
The cooling system is the backbone of any ice block maker machine, dictating its efficiency, reliability, and suitability for specific industrial refrigeration needs. Whether opting for air-cooled or water-cooled designs, understanding these systems empowers businesses to make informed decisions that align with operational demands.
At BAOCHARM, we engineer industrial ice machines tailored to your unique requirements. From energy-efficient water-cooled systems to robust air-cooled units, our solutions ensure seamless ice production. Contact us to discuss your project or explore our range of industrial refrigeration systems. Let’s build a cooler future together.

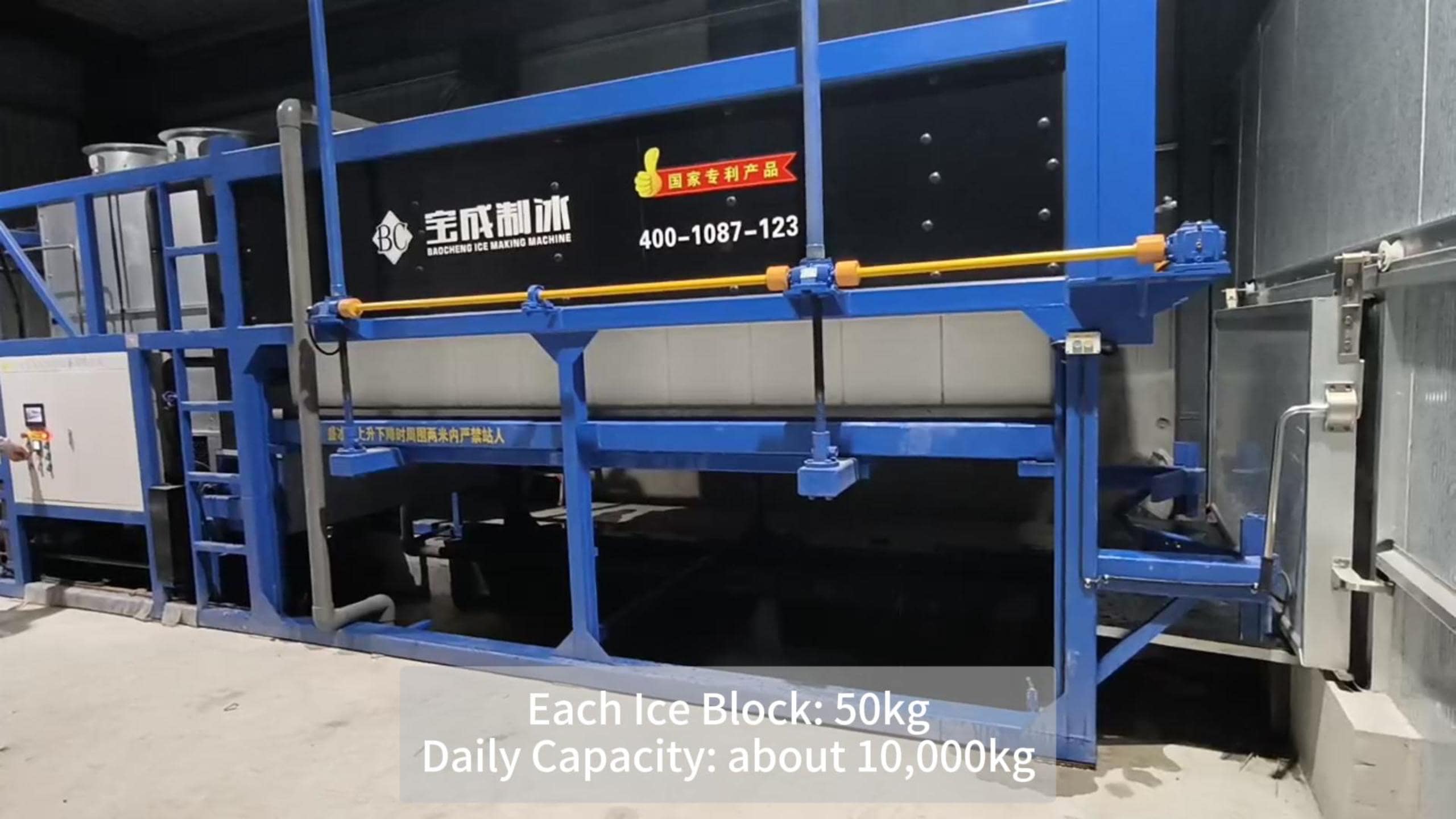

A trial run for a domestic shipment of our state-of-the-art 10-ton per day, 50kg block ice machine
Gratitude is due to our engineers for capturing the essence of the installation site, as their videos provide us with a unique opportunity to delve deeper into the subtle distinctions between our domestic and export ice-making equipment.
Product Introduction: Model #BCPY-4.9T-9.8T
It is against this practical backdrop that we are able to explore and explain the nuanced differences that define our block ice machines, whether they are tailored for the familiar terrain of our local market or the varied climates and conditions they will encounter across the globe.
In the realm of industrial ice-making equipment, the nuanced differences between domestic and export machines are often overlooked yet critically important. As a company with a strong legacy in the manufacturing of high-caliber block ice machines, we take pride in our ability to tailor our equipment to the specific demands of diverse markets. This blog post aims to delve into the structural distinctions of our block ice machines designed for the domestic market versus those crafted for international export, showcasing our commitment to professional excellence and precision in equipment manufacturing.
Design Adaptability: Domestic Versus Export
Our domestic block ice machines are designed with a level of flexibility that reflects the variety of transportation options available within the country. This adaptability allows us to engineer solutions that are intricately aligned with the actual needs and spatial constraints of the installation site.
Conversely, when it comes to exporting our equipment, we must navigate the constraints imposed by container shipping dimensions. Currently, our export-ready machines are designed to a largest capacity of 20 tons per unit to optimize shipping logistics. While we are capable of producing machines with greater production capacities, such customizations necessitate special transportation arrangements, which may incur additional costs.
Installation Convenience: Water Cooled Ice Machines
For our export models, we prioritize ease of installation, particularly in the design of the cooling system. We opt for water cooled systems that utilize cooling tower units to cool the compressor units. This choice offers several advantages:
Simplified installation that does not require welding, reducing the complexity of on-site tools and installation conditions.
The cooling tower’s ability to be disassembled for shipping saves considerable space and reduces transportation costs.
Increased flexibility in the placement of equipment, allowing for the cooling tower to be situated in compact spaces or even on rooftops, provided there is adequate structural support.
Air Cooled Ice Machines
Suitable for Low-Output Block Ice Machine
Water Cooler Ice Maker
Tailored for Large Production Volume Block Ice Machine
Ice Block Machine with Evaporative Cooling System
Made for High-Capacity Domestic Block Ice Machine
Compressor Unit Design: Voltage, Generator Compatibility, and Climate Considerations
The design of our compressor units for export machines is meticulously planned to accommodate local voltage standards, compatibility with generators, and the unique challenges posed by extreme temperatures, such as those areas found highest temperature reach to +50℃. Rest assured, our robust technical expertise and extensive experience enable us to meet and exceed expectations in any scenario.
Refrigerant Options and Shipment Constraints
We offer a wide selection of ice machine refrigerants, including R22, R507, and R404a. However, due to hazardous goods shipping restrictions for sea transport, our machines are shipped without refrigerant, allowing for local filling by the client upon arrival.
Operational Systems: Cutting-Edge and Customizable
Our operational systems are a testament to our innovative spirit. We employ a proprietary operating system that exudes a high-tech aura, with dual-language capabilities and the option for custom multi-language interfaces. This ensures that users can monitor equipment status and operate the machine with greater clarity and ease.
Stringent Quality Control: Pre-Shipment Inspection and Testing
Before any machine is deemed ready for export, it undergoes a rigorous quality control process. This includes two to three pre-shipment trial runs to guarantee that every component functions flawlessly. Only when we are fully confident in the machine’s performance do we proceed with shipping arrangements.
In conclusion, our approach to manufacturing block ice machines for domestic and export markets is underpinned by a dedication to excellence and a deep understanding of the nuanced requirements of each. By maintaining the highest standards of professionalism and precision, we aim to enhance customer trust and solidify our position as a leading provider of ice-making solutions worldwide.
