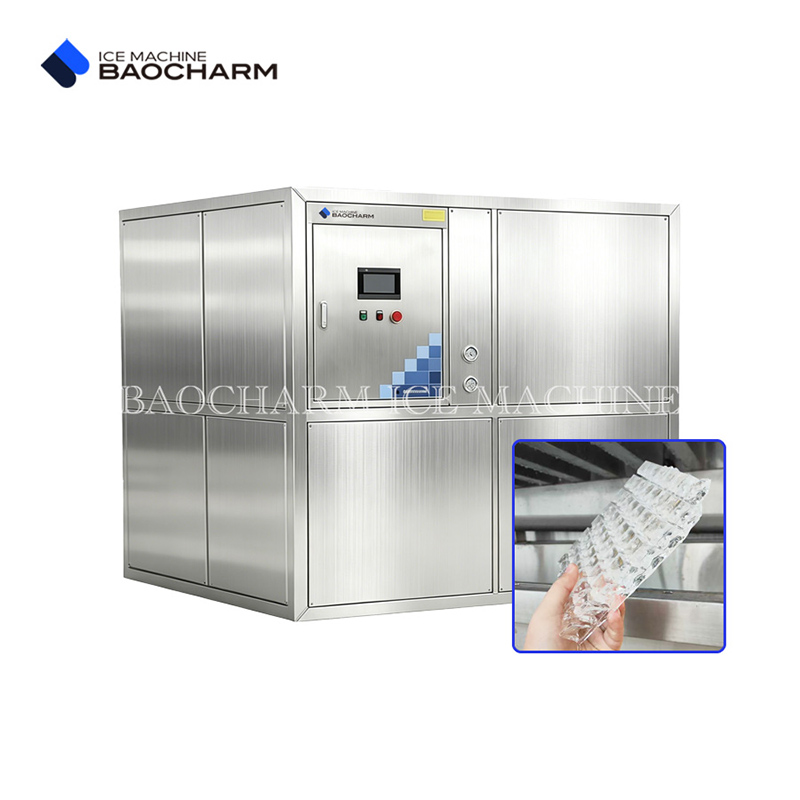

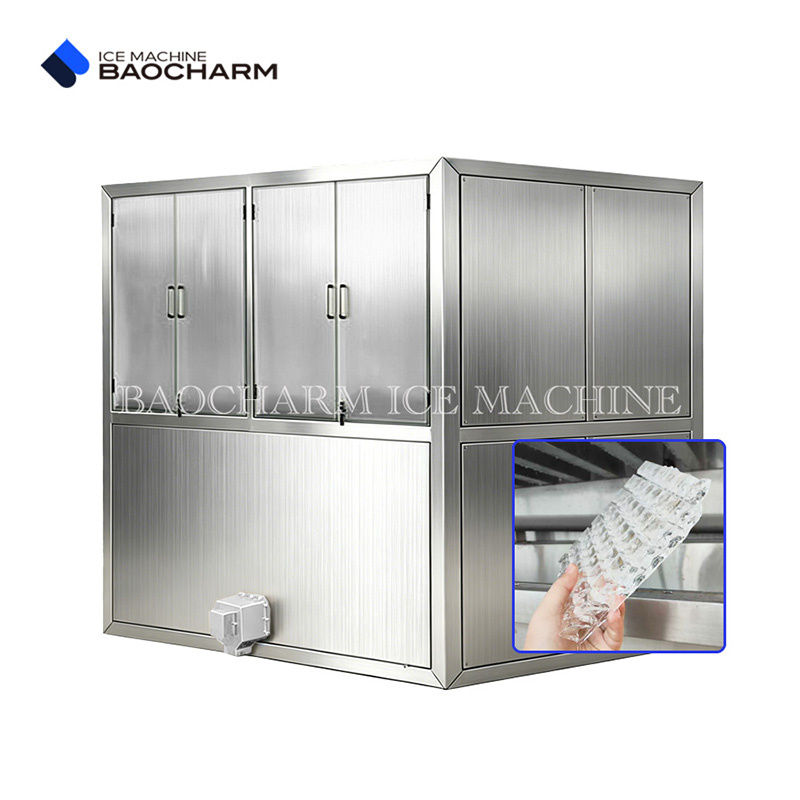

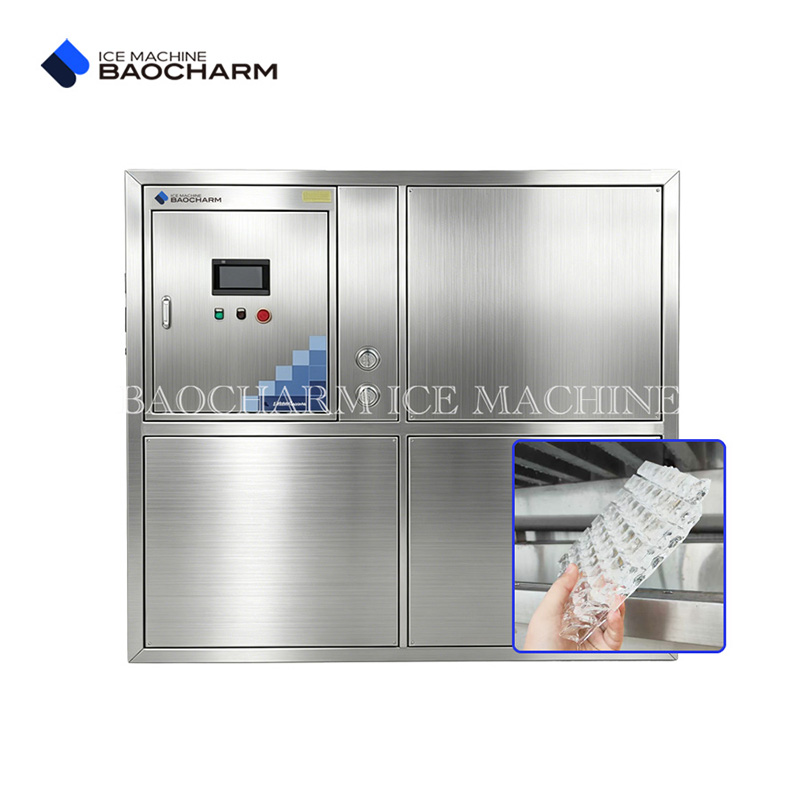

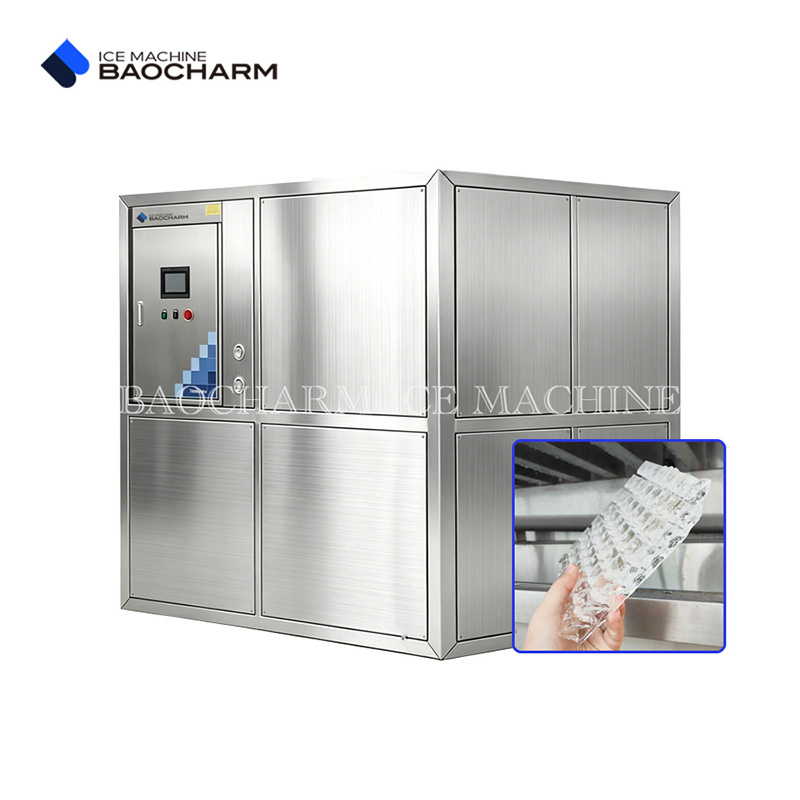

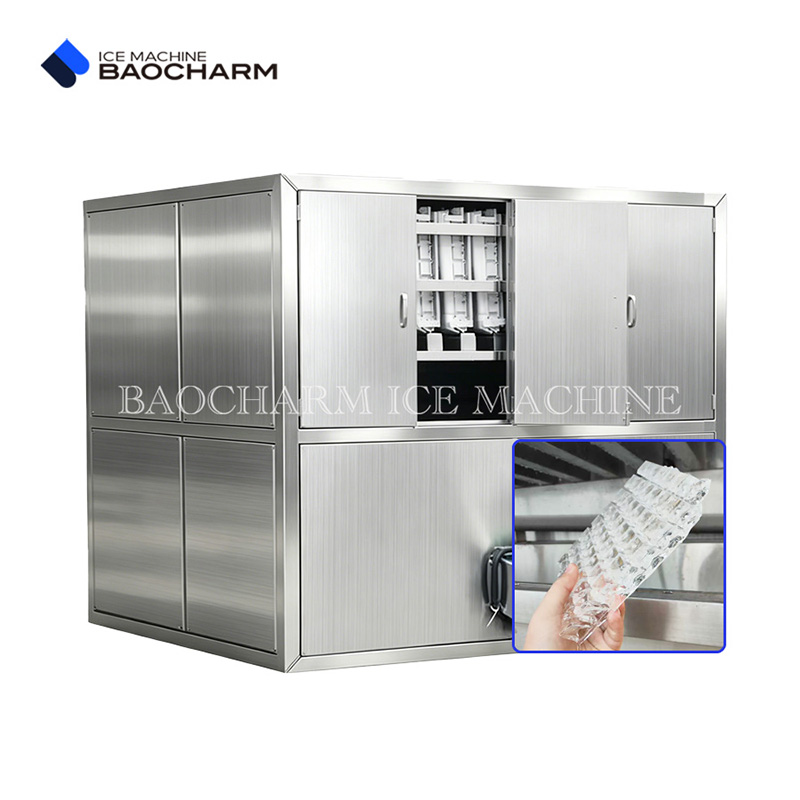

3 Ton Water Cooled Food Grade Cube Ice Making Plant

3 Ton Water Cooled Cube Ice Plant for Food Processing – Engineered for Food Safety

BAOCHARM brings over 10 years of specialized experience in designing ice plants for the food processing sector. The 3 ton water cooled ice cube plant for food processing is certified to CE and ISO 9001 standards, with its design informed by feedback from food safety auditors and plant managers. This plant delivers a consistent 3,000 kg of cube ice per day, maintaining product core temperatures in meat processing, poultry cutting, and vegetable packing lines. The water-cooled design eliminates hot air discharge into the processing room, a crucial advantage in facilities where ambient heat load must be strictly controlled. Our project references include installations in facilities with BRC and IFS certifications, demonstrating the machine’s ability to meet the most stringent audit requirements.

3 Ton Cube Ice System with Multi-Stage Water Filtration – Codex-Compliant Purity

Edible ice must comply with microbiological and chemical standards that are identical to drinking water. The 3 ton cube ice system with multi-stage water filtration uses a sequence of 5-micron pre-filtration, granulated activated carbon, and a final 1-micron absolute filter. Where source water TDS exceeds 500 ppm, we recommend the optional double-pass RO system, which reduces dissolved solids to below 20 ppm. An integrated UV-C disinfection chamber can be added to inactivate any potential bacterial contamination in the water supply line. BAOCHARM includes a comprehensive water treatment operating manual, and upon request, we can connect you with a local water testing laboratory to establish your baseline parameters.

3 Ton Ice Cube Plant with Automatic Weighing Packing System – Precision Without Contamination

Meeting net weight regulations while preventing contamination is a critical concern for edible ice producers. The 3 ton ice cube plant with automatic weighing packing system addresses both with a fully enclosed, CIP-compatible (Clean-in-Place) packing module. The multi-head weigher uses strain-gauge load cells with a typical accuracy of ±2 grams per bag, automatically ejecting any pack outside the preset tolerance. The bagging area is illuminated and accessible for visual inspection, and the quick-release conveyors allow tool-free disassembly for deep cleaning. BAOCHARM field engineers have installed these systems in over 30 countries, and we maintain detailed installation guides and spare parts lists to support your local maintenance team.

Industrial 3 Ton Ice Cube Machine for Edible Ice Production – Material Integrity

Trust begins with materials. This industrial 3 ton ice cube machine for edible ice production uses only AISI 304 stainless steel for all ice-contact components, with surface finishes of Ra ≤ 0.8 µm to inhibit biofilm formation. All gaskets are FDA-compliant EPDM, and lubrication points use NSF H1 registered food-grade grease. We provide a full traceability document for the materials, and our quality control team performs a pre-shipment swab test on the evaporator surface for ATP bioluminescence as an objective cleanliness indicator. This is the level of transparency that professional food processors demand, and it comes standard with BAOCHARM.

Customized 3 Ton Water Cooled Cube Ice Making Solution – Your Plant, Your Spec

Standard machines solve standard problems; your production floor is unique. BAOCHARM’s customized 3 ton water cooled cube ice making solution starts with a technical questionnaire and a plant layout review conducted by a senior refrigeration engineer. We can split the condensing unit for remote outdoor placement, modify discharge heights to fit low-clearance facilities, and add explosion-proof components for specific industrial environments. The goal is not to sell you a catalog product, but to deliver an integrated ice production cell that fits seamlessly into your workflow, with documentation that your insurance and regulatory bodies will accept without question.

CTA – Request a Quote

Describe your operation’s ice consumption, water quality, and space constraints, and our engineering team will propose a tailored, food-safe ice plant with full process documentation. Click here to get in touch with a BAOCHARM application specialist and receive a preliminary layout within 48 hours.

FAQ

Q: Can the plant be validated for export to countries with strict food import regulations?

A: Yes. We routinely supply machines to markets requiring FDA, EU 1935/2004, and other food contact certifications. Full certification packages are available.

Q: How often should the CIP cycle be performed on the packing system?

A: We recommend a brief rinse-down after each production run and a complete CIP cycle with a foaming cleaner weekly. Detailed procedures are in the manual.

Q: What if my space cannot accommodate the standard layout?

A: Our customization service covers reconfiguration of the frame and piping, enabling installation in L-shaped spaces, low ceilings, or split indoor/outdoor setups.
