A Professional Guide to Industrial Block Ice Maker Machine Installation and Commissioning

Industrial block ice maker machines are indispensable for industries requiring large-scale ice production, from food processing to chemical storage. Proper installation and commissioning ensure optimal performance, energy efficiency, and longevity. This guide provides a step-by-step overview of installing and testing a block ice maker machine, tailored for ice-making factories or facilities prioritizing high-volume ice block production.

Pre-Installation Preparation

Before initiating the installation process, thorough preparation is critical to avoid operational setbacks.

Equipment Inspection

• Verify the block ice maker machine model and specifications align with your ice production requirements.
• Inspect all included components (e.g., tools, sensors, manuals) for completeness.
• Check for visible damage incurred during transportation.

Site Assessment

• Ensure the installation area meets spatial requirements for operation and maintenance access.
• Confirm power supply voltage, frequency, and phase match the machine’s specifications.
• Validate cooling water sources for flow rate, temperature (ideally ≤25°C), and purity (low mineral content to prevent scaling).
• Test drainage systems to prevent water accumulation or blockages.

Installation Process

• A structured installation workflow minimizes errors and ensures safety compliance.

Foundation Construction

• Build a reinforced concrete base or steel frame to support the machine’s weight and dimensions.
• Use a spirit level to ensure the foundation is perfectly flat, preventing vibrations during operation.

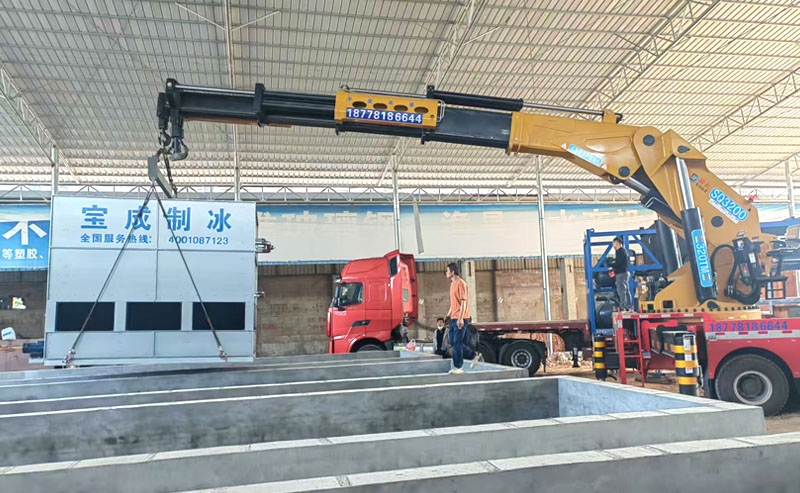

Positioning the Machine

• Employ certified lifting equipment to place the block ice maker machine onto the foundation.
• Adjust positioning to maintain horizontal alignment.

Pipeline and Electrical Connections

• Connect cooling water inlet/outlet pipes using corrosion-resistant fittings.
• Route drainage pipes with a downward slope (≥3°) to facilitate smooth water discharge.
• Follow the manufacturer’s electrical wiring diagram to connect power lines and control panels. Secure connections with insulated terminals.

Commissioning and Testing

Post-installation testing guarantees operational reliability and safety.

Pre-Startup Verification

• Double-check pipeline seals, valve orientations, and electrical connections.
• Confirm no installation steps (e.g., grounding, sensor calibration) were overlooked.

Initial Power-Up

• Energize the machine and monitor for abnormal noises, odors, or electrical faults.
• Test control panel responsiveness and error code displays.

System Validation

• Activate the cooling system to verify water circulation efficiency.
• Initiate a trial ice block making cycle, observing ice formation uniformity and ejection mechanisms.

Functional Calibration

• Adjust parameters (e.g., freezing time, water injection volume) to optimize ice block size and production speed.
• Test automated ice harvesting and conveyor systems (if applicable).

Performance Evaluation

• Conduct a 24-hour endurance test to assess stability under continuous operation.
• Measure daily ice output against the machine’s rated capacity.

Safety Protocols

• Verify emergency stop buttons, overload protection, and temperature sensors function correctly.
• Provide hands-on training for operators and document troubleshooting steps.

Conclusion

Proper installation and commissioning of an industrial block ice maker machine are pivotal to maximizing ice production efficiency and minimizing downtime. By adhering to technical guidelines and prioritizing safety, businesses can ensure seamless integration into their operations.
