Industrial Flake Ice Machines: The Ultimate Guide to Efficient Cooling Solutions

The Cooling Powerhouse Behind Modern Industries

Imagine a seafood processing plant where freshly caught fish must be preserved at optimal temperatures within minutes. Or picture a concrete pour on a sweltering construction site, where controlling the mix temperature is critical for structural integrity. In both scenarios, a specialized cooling solution works tirelessly in the background—the industrial flake ice machine. As a versatile and highly efficient cooling medium, flake ice has become indispensable across numerous sectors. This article provides a comprehensive look at what industrial flake ice machines are, how they operate, their distinct advantages, and where they deliver the greatest value. Whether you're in food processing, construction, or chemical manufacturing, understanding this technology can transform your cooling processes.

What is an Industrial Flake Ice Machine?

An industrial flake ice machine is a heavy-duty refrigeration system designed to produce a continuous supply of thin, dry, and sub-cooled ice flakes. Unlike the clear, solid cubes or tubes made by other systems, flake ice is characterized by its flexible, malleable texture and extremely high surface-area-to-volume ratio. This unique form factor is its primary advantage.

Core characteristics of true industrial-grade machines include:

• High-Capacity Output: Designed for continuous, large-scale ice production, often measured in tons per 24 hours.
• Robust Construction: Built with commercial-grade components, such as stainless steel contact surfaces and heavy-duty compressors, to withstand constant operation.
• Automated Operation: Modern units feature automatic flake ice making cycles, including self-cleaning functions and monitoring systems for consistent, hygienic ice production with minimal manual intervention.

How Does a Flake Ice Making Machine Work?

The process within an automatic ice making machine of this type is a continuous cycle of freezing and harvesting. Here’s a breakdown of the core components and the typical automatic flake ice making process:

Core Components

1. Evaporator Drum: A vertically or horizontally mounted cylinder, chilled internally by refrigerant. This is where water freezes.
2. Ice Knife or Scraper: A precision blade that scrapes the thin layer of ice formed on the drum's outer surface.
3. Refrigeration System: The compressor, condenser, and expansion valve that circulate refrigerant to cool the evaporator.
4. Water Distribution System: Sprays a controlled film of water evenly over the evaporator drum.
5. Control Panel: The brain of the operation, automating cycles and monitoring performance.

The Four-Step Flake Ice Production Cycle

1. Water Application: Purified water is sprayed onto the exterior of the chilled evaporator drum.
2. Freezing: A thin layer (typically 1-3 mm) of ice almost instantly freezes onto the drum's surface.
3. Harvesting: As the drum rotates, the stationary ice knife scrapes off the ice layer, causing it to break into small, dry flakes.
4. Collection & Storage: The flakes fall by gravity into a insulated storage bin below, ready for use.

This efficient cycle allows an automatic flake ice making machine to produce a consistent supply of ice with minimal energy expenditure during the harvest phase.

Why Choose Flake Ice? Key Advantages and Properties

The design of a flake ice machine yields a product with superior cooling properties for industrial applications.

• Exceptional Cooling Efficiency: The large surface area of flake ice allows for rapid and direct heat transfer. It cools products much faster than block or tube ice, which must first be crushed or slowly melt.

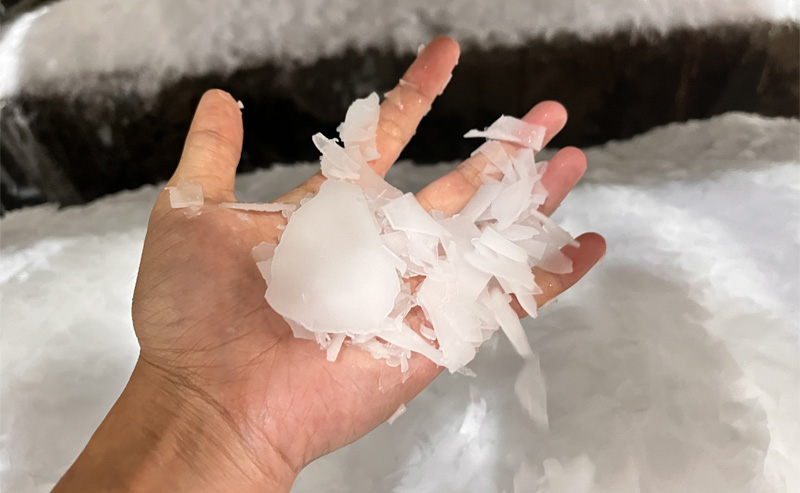

• Dry & Flowable Texture: High-quality machines produce "dry" flakes (temperature around -7°C / 19°F) that do not clump together easily. This makes them easy to handle, convey pneumatically, and mix uniformly with products.
• Gentle Contact: The soft, pliable nature of flake ice provides excellent cooling without damaging delicate surfaces, such as fish skins or fresh produce.
• Maximized Coverage: Its malleable form allows it to mold around irregular shapes, ensuring complete coverage and efficient cooling, which is crucial in applications like concrete cooling or chemical processes.

Primary Application Fields for Industrial Flake Ice

As highlighted by industry applications from providers like BAOCHARM, flake ice is a critical tool across diverse sectors.

• Food Processing & Preservation: This is the largest application area. Flake ice is ideal for:

1. Seafood: Used for chilling catches onboard and in processing plants to maintain freshness and extend shelf life.
2. Poultry & Meat: Rapidly reduces carcass temperature post-processing, inhibiting bacterial growth.
3. Fresh Produce: Protects fruits and vegetables during sorting, processing, and transportation by providing consistent humidity and temperature.

• Concrete Cooling: In large-scale construction, controlling the heat of hydration is vital. Flake ice is added directly to the concrete mix as a partial substitute for water, providing precise temperature control for stronger, more durable structures.

• Chemical & Industrial Processes: Many chemical reactions and processes, such as gas compression or batch mixing, require precise, direct cooling. Flake ice serves as an efficient and controllable cooling medium.

• Retail & Food Service Display: Flake ice is commonly used in supermarket seafood displays and salad bars because of its attractive, bright white appearance and excellent cooling properties that keep products fresh and visually appealing.

Optimize Your Operations with the Right Ice Solution

The industrial flake ice machine stands out as a specialized, efficient, and versatile workhorse for industries where rapid, direct, and gentle cooling is paramount. Its ability to produce a continuous stream of dry, sub-cooled flakes makes it irreplaceable in food safety, construction integrity, and precise manufacturing processes. From automatic flake ice making for seafood preservation to large-scale concrete production, this technology delivers tangible benefits in efficiency, product quality, and operational cost savings.

Ready to Explore Your Flake Ice Solution?

Does your business require rapid, efficient, and hygienic cooling? An automatic flake ice making machine might be the key to enhancing your product quality and operational efficiency.

Contact BAOCHARM's expert team today for a personalized consultation. We can help you determine the optimal capacity and configuration for your specific needs, whether in seafood, produce, construction, or manufacturing. Let us provide you with a reliable, cost-effective automatic ice making machine solution backed by professional support.
