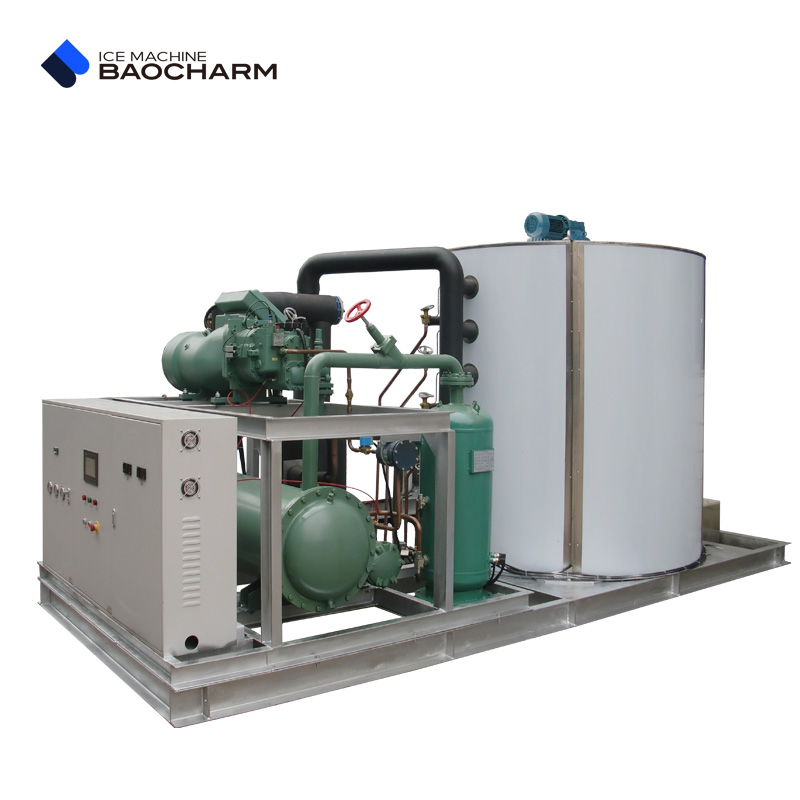

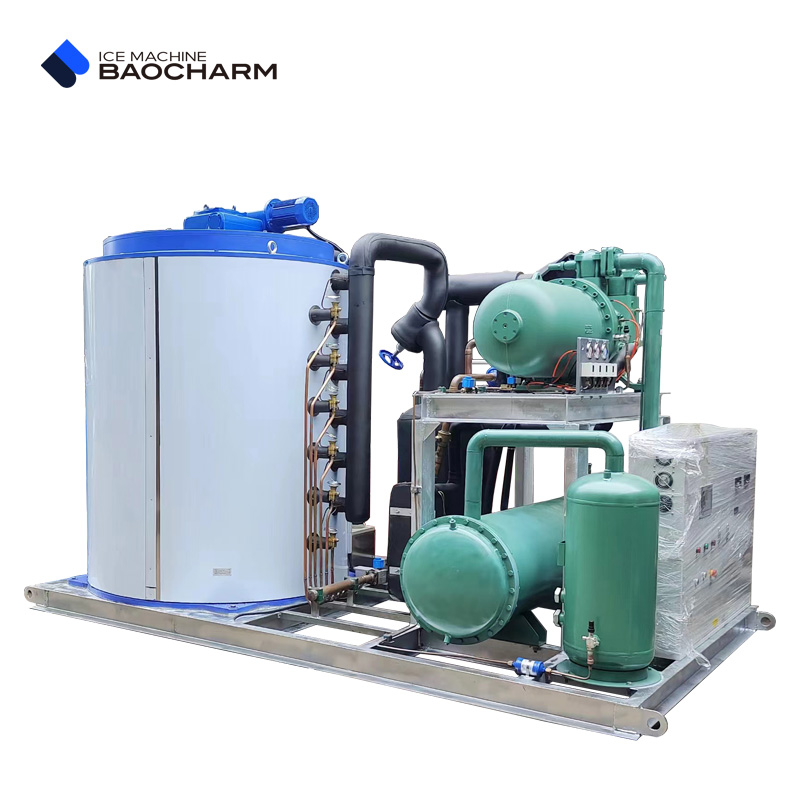

Full Automatic Ice Plant System 30 Ton Flake Ice Making Machine for Concrete Cooling

In the realm of modern mega-construction—where the integrity of dams, skyscrapers, and bridges hinges on precise thermal control—the BCPB-30T establishes a new standard. This is not merely a large ice flake making machine; it is a fully automated, high-capacity ice plant flake ice making system engineered as a critical piece of industrial infrastructure. Designed specifically to meet the massive and non-negotiable cooling demands of modern concrete batching, it delivers reliable, bulk ice production that is essential for managing the exothermic heat of cement hydration in large pours, directly contributing to structural strength and preventing thermal cracking.

Engineering for the Scale of Modern Concrete Construction

Concrete cooling is a precise science. The BCPB-30T system is engineered to address the core challenges of this application: immense daily ice demand, absolute reliability to prevent job site delays, and consistent ice quality that does not alter the concrete's water-cement ratio.

Core Design Philosophy: Automation & Reliability

The system’s design prioritizes unattended operation and integration into industrial batch plant controls.

• Complete Process Automation: From water intake and treatment to final ice discharge, the automatic flake ice making sequence is managed by a centralized industrial PLC. It features self-diagnostic alerts, automated cleaning cycles (CIP), and can interface with concrete plant management systems for synchronized batching.
• Engineered for Continuous Duty: As a 30 ton flake ice machine, it is built with industrial-grade components—including robust semi-hermetic compressors and heavy-duty evaporators—designed for 24/7 operation under demanding conditions, ensuring it meets the schedule of critical pour phases.
• Precision Ice for Mix Design: Produces dry, sub-cooled flake ice with precise consistency. This "dry" characteristic is vital; it allows the ice to absorb the maximum latent heat during melting within the concrete mix without prematurely adding excess free water, which would compromise the designed compressive strength.
• High-Efficiency Configuration: Typically employs an evaporative condenser or a water-cooled condenser system to achieve optimal energy efficiency and maintain rated capacity even in high ambient temperatures common at construction sites.

Why Flake Ice is the Superior Choice for Concrete Cooling

The choice of a flake ice machine for concrete cooling is based on proven material science and practical logistics.

• Optimal Heat Absorption: The large surface area-to-volume ratio of flake ice allows for rapid and uniform heat exchange within the concrete mixer, effectively lowering the temperature of the aggregate and cement slurry.
• Ease of Integration and Handling: Dry flake ice flows readily, allowing for automated weighing and conveyance directly into concrete mixers or aggregate belts using industrial screw conveyors, seamlessly fitting into modern batching plant workflows.
• Consistency and Predictability: Unlike chilled water or liquid nitrogen, ice provides a fixed, measurable cooling effect per kilogram, allowing engineers to make precise calculations for temperature control in their mix designs.

System Architecture & Technical Specifications

The BCPB-30T is conceived as a complete production node. Its specifications reflect its role as primary cooling infrastructure.

Primary System Specifications

• Model: BCPB-30T Full Automatic Ice Plant System
• Rated Ice Production: 30 tons (60,000 lbs) per 24 hours (at standard conditions: water 15°C, air 25°C).
• Ice Type: Dry, Sub-Cooled Industrial Flake Ice.
• Ice Temperature: Typically -7°C to -10°C at discharge.
• Automation Level: Fully programmable PLC control with remote monitoring capability. Includes automated water treatment regulation and system sterilization cycles.
• Key Components: Multiple compressor racks for redundancy and load management, large-scale evaporator drum, and a high-capacity condensing unit.
• Power Supply: Designed for high-voltage industrial three-phase connection (e.g., 380-480V, 50/60Hz).

Integration with Concrete Batching Operations

This ice plant flake ice making system is designed to be the ice-generation core of a larger material handling ecosystem.

• Bulk Ice Storage & Metering: The system typically includes a large, insulated live-bottom ice storage silo that acts as a buffer, allowing ice production to continue independently of batching schedules. Ice is then precisely metered via weighing screw conveyors.
• Direct Batch Plant Integration: The ice discharge can be programmed to sync with the concrete plant's control system, delivering a pre-set weight of ice directly into the mixer or onto aggregate belts for each batch, ensuring perfect mix formula adherence.
• Comprehensive Water Management: For optimal performance, the system can be integrated with water chilling systems to pre-cool the inlet water, boosting overall efficiency and capacity, especially in hot climates.

The Value Proposition: Risk Mitigation and Project Assurance

For contractors and ready-mix producers undertaking mega-projects, the BCPB-30T is an investment in project security, compliance, and efficiency.

• Mitigates Structural Risk: By enabling precise and reliable temperature control, it directly helps prevent thermal cracking—a major cause of long-term structural weakness and costly repairs.
• Ensures Schedule Compliance: Its high reliability and automated operation prevent ice supply from becoming a critical path delay, protecting against enormous financial penalties associated with construction delays.
• Optimizes Operational Logistics: Eliminates the uncertainty, cost, and quality variability associated with purchasing and transporting bagged ice, bringing a critical material under direct, controlled onsite production.

This automatic flake ice machine system transforms ice from a purchased commodity into a managed, on-demand utility, providing engineers with the certainty needed to execute the world's most ambitious concrete structures.

Guarantee Pour Integrity on Your Mega-Project

Ensure your project’s concrete specifications are met with certainty. Partner with us for your critical cooling infrastructure. Click below to submit your project details for a detailed technical and commercial offer for the BCPB-30T ice plant.

FAQ

Q1: Why is a specialized flake ice machine for concrete cooling necessary? Can't we use packaged ice?

A: For large-scale projects, packaged ice is logistically impractical, costly, and introduces quality control variables. A dedicated 30 ton flake ice machine provides a consistent, onsite supply of dry ice that can be automatically metered into batches. This ensures precise temperature control, reduces cost per ton, and eliminates delivery dependencies, which is critical for continuous pour operations.

Q2: How does the "dry" quality of the flake ice impact the concrete mix design?

A: "Dry" flake ice has minimal surface moisture. When it melts in the mixer, it absorbs a significant amount of heat (latent heat of fusion) while becoming part of the batch water. This allows engineers to cool the mix dramatically without adding extra liquid that would dilute the cement paste and weaken the final concrete, a common problem when using chilled water alone.

Q3: What are the key infrastructure requirements for installing a 30-ton ice plant on a construction site?

A: Key requirements include: a substantial, stable concrete pad; access to a high-volume, clean water source (potable or filtered); a high-capacity electrical connection (often requiring a transformer); and space for the unit and its condenser, with consideration for access and maintenance. A basic shelter or enclosure is also highly recommended.

Q4: Can the system's ice output be adjusted based on the project's daily needs?

A: Yes. While designed for maximum output, the automatic flake ice machine control system allows operators to set production targets. The sophisticated PLC can modulate compressor output and cycle times to produce only the required amount of ice, optimizing energy use during periods of lower demand without shutting down completely.

Q5: What is involved in the routine maintenance of such a large, automated system?

A: Routine maintenance is largely predefined and supported by the automation. Key tasks include: monitoring system alerts via the HMI, regular inspection and cleaning of air filters (for air-cooled condensers) or water treatment systems (for evaporative/water-cooled), and scheduled execution of the automated cleaning program. Due to its scale, a professional service contract is recommended for periodic in-depth maintenance, which BAOCHARM Ice Machine can provide.
