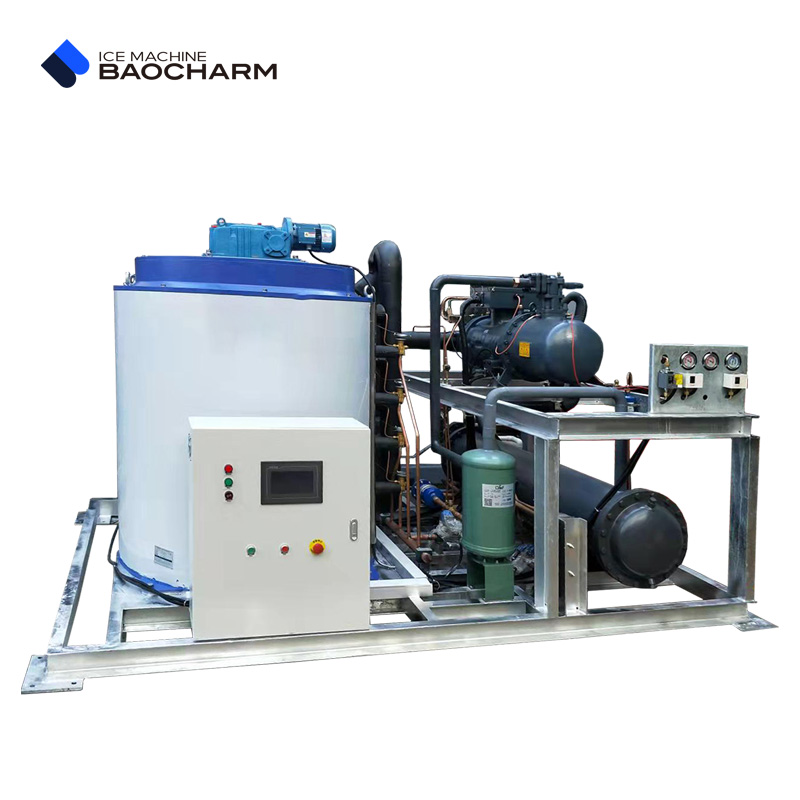

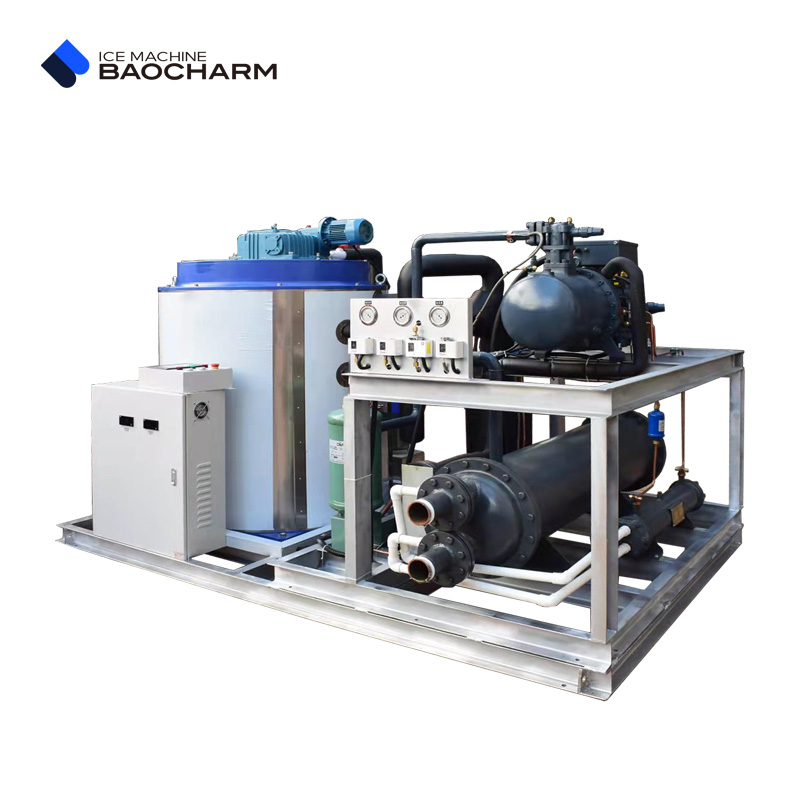

Heavy Duty 10 Ton Daily Production Ice Flake Maker Machine for Fishing Vessels

At sea, reliability isn't just a feature—it's a necessity. The BCPB-10T Heavy-Duty Ice Flake Maker is engineered to be the most dependable link in your onboard cold chain. Designed specifically for the punishing marine environment, this robust 10 ton ice flake maker delivers a continuous, high-volume supply of superior dry ice flake, the critical medium for maintaining catch quality from the moment it comes aboard until it reaches port. This machine isn't merely adapted for marine use; it is built from the ground up to withstand vibration, corrosion, and the relentless demands of commercial fishing operations, ensuring your investment is protected and your product is preserved.

Engineered for the Maritime Environment

Commercial fishing presents unique challenges: constant motion, saltwater corrosion, limited space, and the absolute need for faultless operation. A standard ice flake machine is insufficient. The BCPB-10T is purpose-built to excel where others fail.

Marine-Grade Durability & Design

• Corrosion-Resistant Construction: Utilizing marine-grade aluminum alloys, powder-coated steel frames, and stainless steel (AISI 316L optional) in critical areas, this ice flake maker machine is fortified against salt spray and humidity, drastically extending service life.
• Stabilized Performance: Key components are mounted on reinforced anti-vibration bases, and the internal refrigeration circuit is designed to maintain stable operation despite vessel movement, preventing issues like liquid refrigerant slugging.
• Compact, Accessible Footprint: Understanding the space constraints on vessels, the BCPB-10T is designed with a optimized footprint and service access points on multiple sides, facilitating easier installation in tight engine rooms or dedicated holds.
• High-Output Efficiency: Producing up to 10 tons of ice flake daily, it meets the high-volume needs of medium to large fishing vessels, ensuring ample ice for effective rift chilling and hold packing to maximize shelf life and value.

Why Dry Flake Ice is Critical for Onboard Fishing

The choice of ice flake is deliberate. Its dry, sub-cooled nature and loose, conformable structure provide unmatched benefits for fishing vessels:

• Optimal Heat Transfer: The irregular shape and low temperature (typically -8°C to -12°C) create maximum surface area contact with fish, drawing heat out rapidly to achieve core temperature reduction quickly.
• Minimal Waterlogging: "Dry" ice flake melts slower than wet ice or slurry, preventing fish from sitting in meltwater which can accelerate spoilage and cause texture degradation.
• Gentle Handling: The soft, flakey structure cushions delicate seafood, preventing physical bruising or crushing that can occur with harder ice forms.

Technical Specifications & Robust Integration

The BCPB-10T is specified to provide clarity and confidence for vessel owners and engineers, ensuring compatibility with your vessel's systems.

Core Technical Specifications

• Model: BCPB-10T Marine-Grade Ice Flake Maker
• Ice Production Capacity: 10 tons per 24 hours (based on seawater at 15°C and ambient 32°C).
• Ice Type: Dry, Sub-cooled Flake Ice (adjustable thickness 1.5-2.5mm).
• Designed For: Primarily seawater operation (standard). Freshwater configuration is available.
• Key Material: Evaporator drum with advanced anti-corrosion coating or optional stainless steel.
• Power Configuration: Robust marine electrical systems, with options for 440V/60Hz or other vessel-standard power supplies.
• Condensing Unit: Equipped with a corrosion-resistant condenser designed for high-ambient marine operation.

Capacity can vary with specific water temperature and ambient conditions.

Building a Complete Onboard Cooling System

An ice flake maker for fishing vessels is the heart of a system. BAOCHARM supports the integration of auxiliary equipment vital for efficient operation:

• Seawater Intake & Filtration: We can specify compatible heavy-duty marine water pumps and multi-stage filtration systems to ensure a clean water supply for ice making, protecting the machine from debris.
• Onboard Ice Storage & Handling: The machine can discharge directly into insulated fish holds or be connected to our marine-grade ice conveyors for distribution. We also offer hold lining solutions to optimize insulation.
• System Redundancy & Control: For larger vessels, we advise on system design that may include backup power tie-ins or integrated monitoring with the vessel's control room for optimal resource management.

The Value of a Purpose-Built Marine Ice Maker

Selecting the BCPB-10T is an investment in catch quality, operational efficiency, and vessel profitability.

• Preserves Catch Value: Superior, rapid cooling directly translates to higher-grade fish, better yields, and increased market value at auction.
• Reduces Operational Risk: Its heavy-duty, marine-focused design minimizes the risk of breakdowns at sea, which can lead to catastrophic loss of catch.
• Optimizes Space & Workflow: The efficient design maximizes ice output per square meter of vessel space, and reliable automation reduces crew labor dedicated to ice management.

This machine embodies the principle that the best preservation begins immediately. By providing a relentless supply of high-quality ice flake where it's needed most, the BCPB-10T safeguards your most valuable asset—your catch.

Equip Your Vessel with Unbreakable Cold Chain Reliability

Marine-grade performance is non-negotiable. Schedule a one-on-one review with our marine application team to discuss the BCPB-10T specifications, integration requirements, and how we support your operations globally.

FAQ

Q1: What makes a marine ice flake maker different from a standard land-based model?

A: A dedicated ice flake maker for fishing vessels like the BCPB-10T incorporates crucial differences: corrosion-resistant materials (not just standard stainless), anti-vibration engineering for all major components, electrical systems rated for marine environments, and condensing units designed to perform efficiently in high ambient temperatures found in engine rooms. A land-based unit would fail prematurely in a marine setting.

Q2: Can this machine run on seawater, and how does that affect maintenance?

A: Yes, the standard BCPB-10T is primarily designed for seawater operation. Using seawater requires more diligent maintenance, primarily regular descaling of the evaporator and water system to remove mineral deposits. We provide clear maintenance schedules and easy-access design to simplify this process. A freshwater rinse cycle option is recommended if docked water is available.

Q3: Is the 10-ton daily output sufficient for my vessel?

A: Capacity needs depend on hold size, trip duration, and catch rates. A 10-ton ice flake maker is suitable for many medium to large offshore vessels. A common rule of thumb is a 1:1 to 1:1.5 ice-to-catch ratio. Our team can help you analyze your specific operation to confirm if the BCPB-10T is the ideal model or if a different capacity from our industrial flake ice machine range is better suited.

Q4: How is the machine powered on the vessel?

A: It is typically connected directly to the vessel's main electrical power system (often 440V/60Hz for larger vessels). It requires a dedicated circuit from the main switchboard. Proper integration by a qualified marine engineer is essential for safety and performance.

Q5: What are the key maintenance tasks at sea?

A: Key onboard tasks include: daily visual checks, ensuring water intake filters are clean, monitoring system pressures, and listening for abnormal sounds. The machine is designed for serviceability at sea, with easy-access panels for critical checks. More extensive servicing is planned for when in port.
